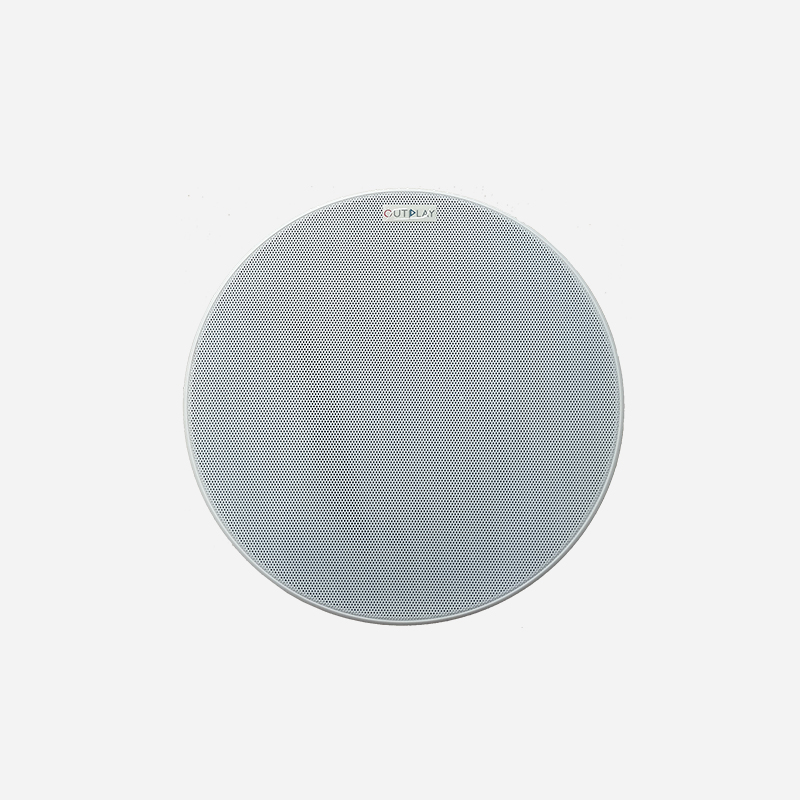

1×6.5″ 2-way Ceiling Loudspeaker System
The OUTPLAY SC6 is a 2-way ceiling speaker system that can be used for various installations where compact size and power is important without compromising on the visual aspect of the venue .

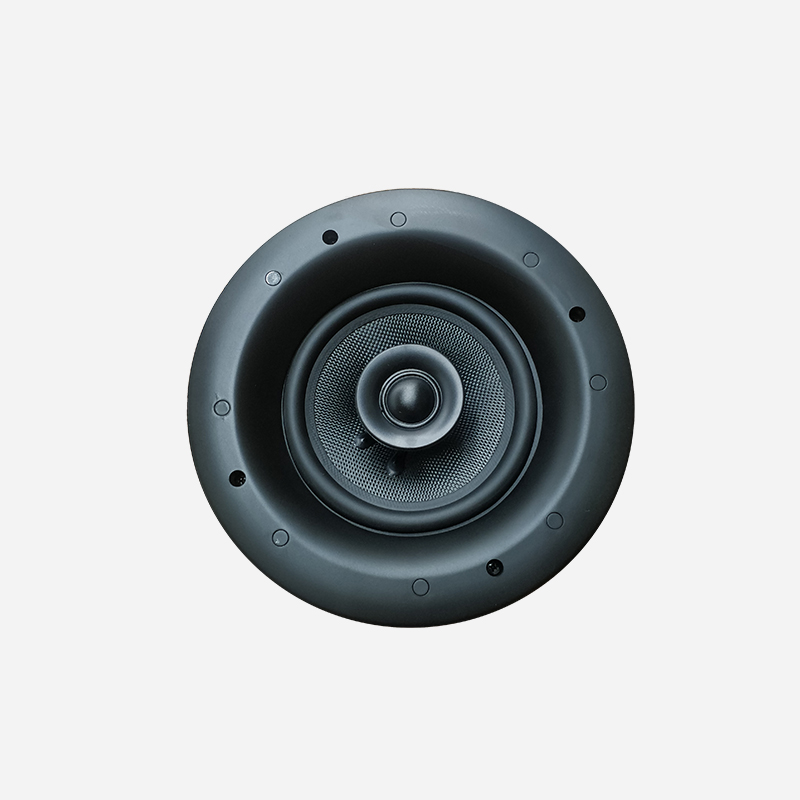

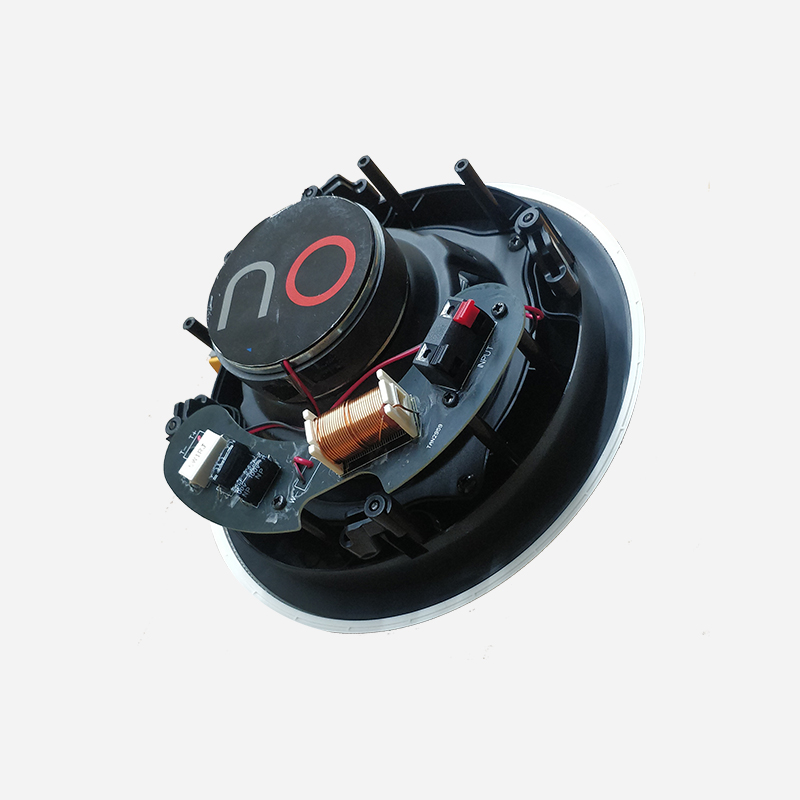

The SC6 Employs a low-distortion 6.5-inch black Kevlar cone woofer that delivers exceptional power and definition. A specially designed crossover network integrates the speaker with a 0.8″ Hi quality ferro fluid silk dome tweeter to ensure crisp HF.
| MODEL | SC6 | ES104BT/ES104WT |
| FREQUENCY RESPONSE(-3dB) | 45Hz-20KHz | 75Hz-20KHz |
| DRIVERS | 1×6.5 inch Black Kevlar cone LF | 1×4″(100mm)/1″voice coil LF |
| 1×0.8 inch silk dome tweeter | 1×0.8″(20mm)/dome tweeter | |
| RATED POWER | 50W RMS,200W peak | 10W/20W/40W/OFF/16Ω |
| SENSITIVITY | 89dB 1watt/1 metre | 88dB 1watt/1 metre |
| IMPEDANCE | 8 ohms nominal | 16 ohms nominal |
| DISPERSION(-6dB) | 120°×120° | 120°×90° |
| CROSSOVER FREQUENCIES | 2.5kHz passive | 3.5kHz passive |
| INPUT CONNECTORS | Terminals | covered barrier strip terminals |
| PACKAGE SIZE | 520mm×98mm | 414×190×285(1Pair) |
| NET WEIGHT | — kg/pc | 3 kg/pc |
| GROSS WEIGHT | — kg/pair | 7 kg/pair |
