OUTPLAY S4

Add to Wishlist
Add to Wishlist
In stock

1×4″ 2-way Loudspeaker System



  • Two-Way High-Output Full-range
  • 4-inch specialized woofer and 0.8-inch dome tweeter
  • Advanced crossover with HF protection
  • 40W continuous, 160W peak power handling
  • Compact multipurpose Design
  • Highly weather-resistant IP46 rating
  • Engineering plastic injection moulding

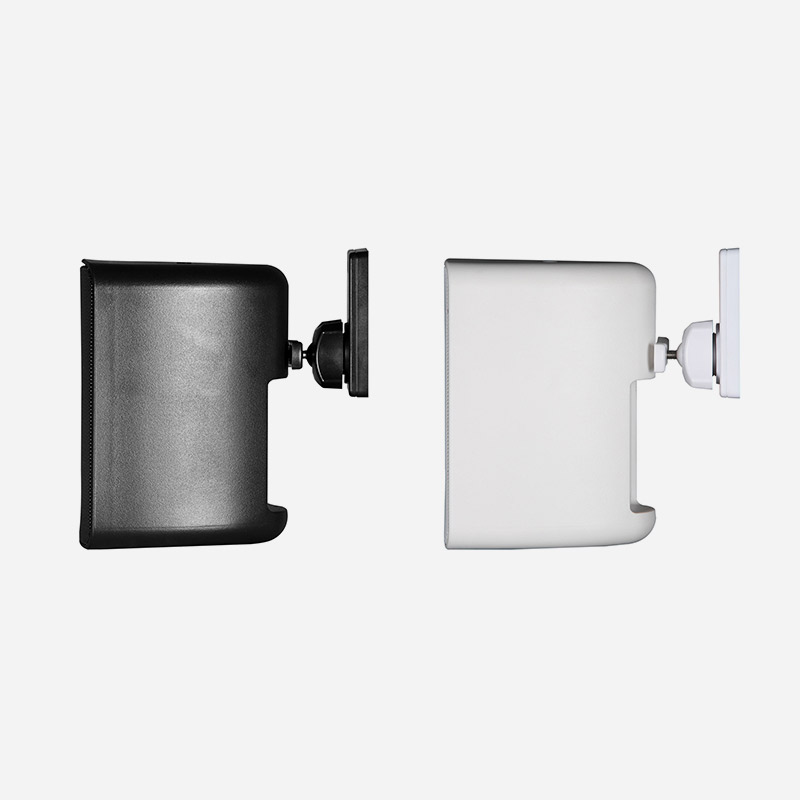

  • Two kinds of mounting brackets



Add to Wishlist
Add to Wishlist

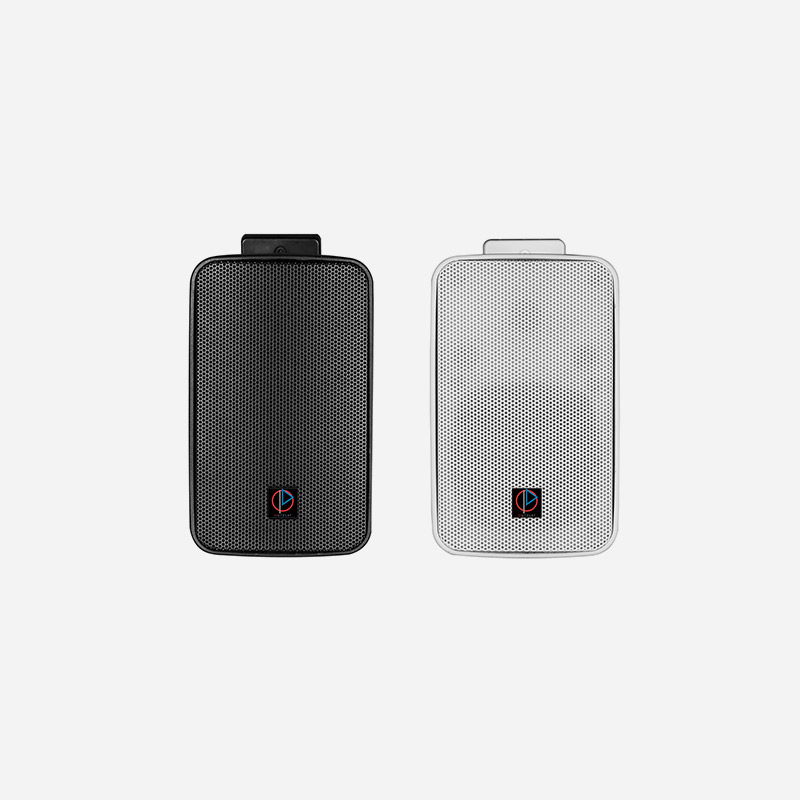

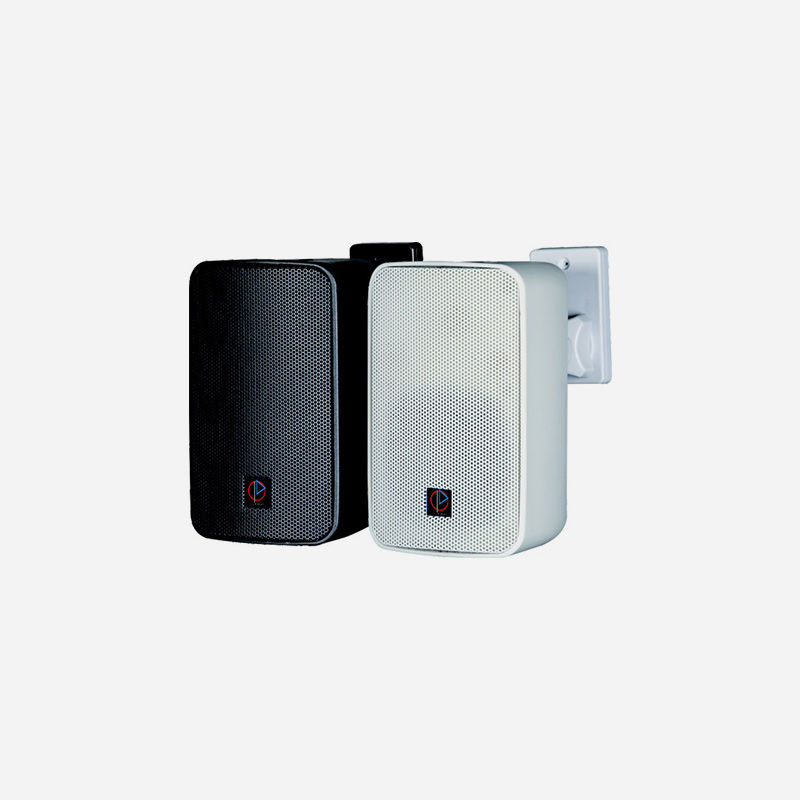

The OUTPLAY S4 is weather-resistant, ultra-compact loudspeaker designed for a variety of install applications. Employing an incredibly low-distortion 4 inch woofer, the S4 will suprise you with its performance. A specially designed crossover network integrates the speaker with a 0.8″ dome tweeter. The OUTPLAY S4 body is made of engineering plastic injection moulding and conforms to IP46 international standard.S4T is equipped with multi-tap transformer based on S4.

Compact cabinet design allows the system to be used for various installations where compact size is important without compromising on quality and power. The S4 can be combined with OUTPLAY SB8 or SB12 for incredible full range sound. The S4 is an ideal solution for installations of individual speakers in conference halls, restaurants or clusters in cultural or religious venues

Applications

• Bars / Bookstores/Café’s / Clothing Store
• Fast Food Restaurants
• variety of other outdoor or indoor background music
• meeting rooms,
• water parks, swimming pools,
• wide variety of other outdoor or indoor background music

Technical Specification

MODEL S4B/S4W
FREQUENCY RESPONSE(-3dB) 75Hz-20KHz
FREQUENCY RESPONSE(-10dB) 70Hz-20KHz
DRIVERS 1×4″(100mm)/1″voice coil LF
1×0.8″(20mm)/dome tweeter
INPUT VOLTAGE
RATED POWER 40W RMS,160W peak
SENSITIVITY 88dB 1watt/1 metre
MAXIMUM SPL 103dB continuous,109 dB peak
IMPEDANCE 16 ohms nominal
DISPERSION(-6dB) 120°×90°
CROSSOVER FREQUENCIES 3.5kHz passive

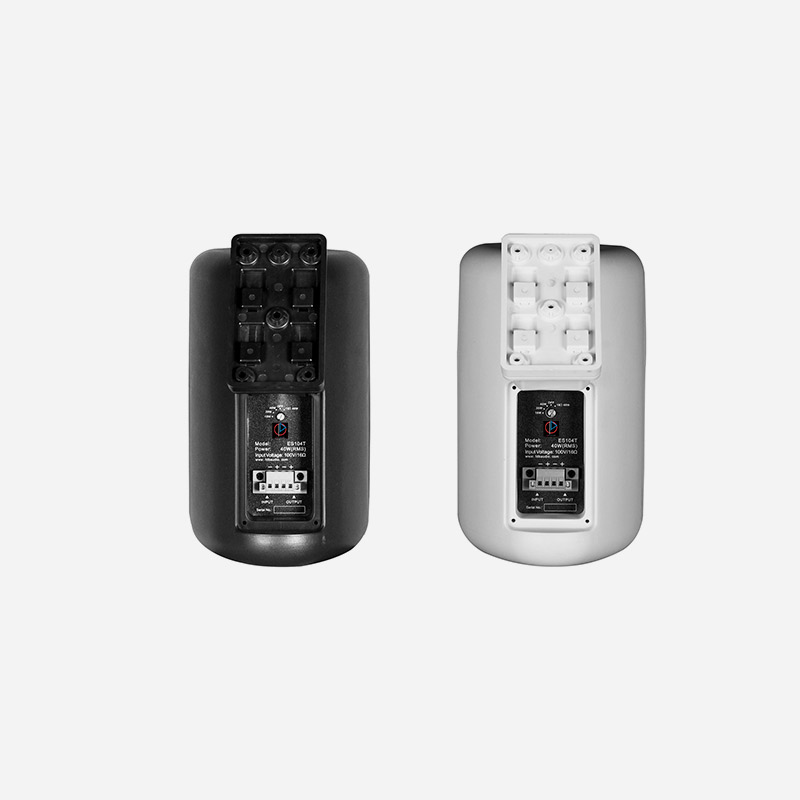

INPUT CONNECTORS covered barrier strip terminals
PACKAGE SIZE 414×190×285mm(1Pair)
NET WEIGHT 2 kg/pc
GROSS WEIGHT 6 kg/pair
