Technical Specification
FREQUENCY RESPONSE(±3dB)：90Hz-18kHz
DRIVERS：51/4″/25mm voice coil LF & 25mm dome HF
RATED POWER：40W RMS, 60W peak
SENSITIVITY：90±3dB 1w/1m
MAXIMUMSPL：107 dB
IMPEDANCE：8 ohms nominal
DISPERSION 1kHz(-6dB)：Horizontal coverage: 100° & vertical coverage: 90°
CROSSOVER FREQUENCIES：2kHz passive
MATERIAL：ABS
COLOR：WHITE/BLACK
SIZE：185x248x140 (mm)
Grille Material：ALUMINIUM
Bracket Material：IRON
IP Level：IP66

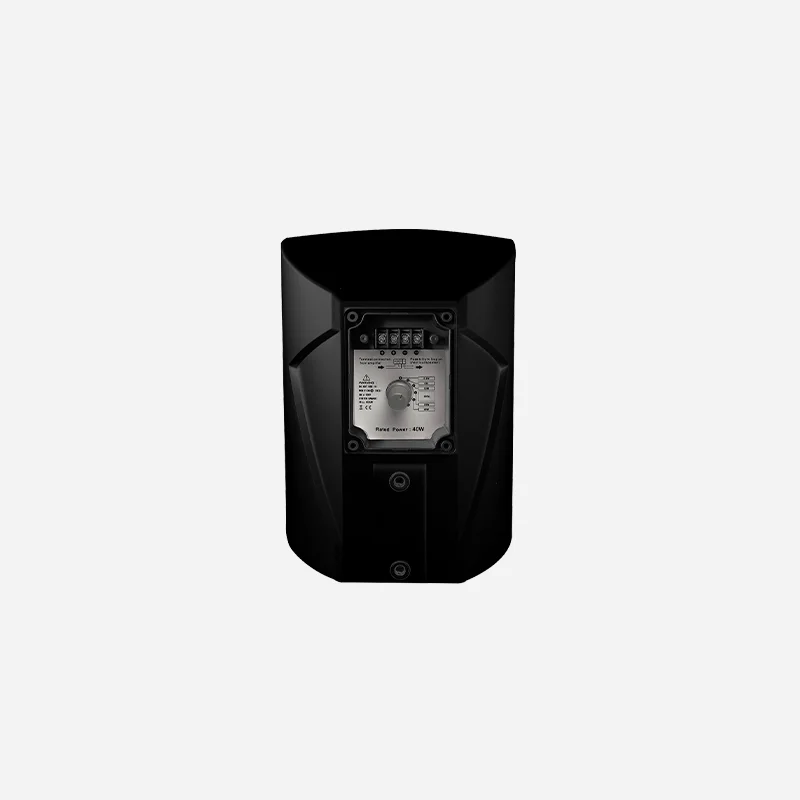

INPUT CONNECTORS：4-position grid type terminal
NET WEIHT：2.7 kg/1pc
