OUTPLAY Z64

Add to Wishlist
Add to Wishlist
In stock

4×6″speaker + 2x 1inch HF 2-way Column Loudspeaker System

FEATURES

  • Compact and powerful
  • High quality and even coverage
  • High quality plywood with polyurea waterproof paint
    Multi combinations for installations
    Used for Live events, church and multi-purpose halls
Add to Wishlist
Add to Wishlist

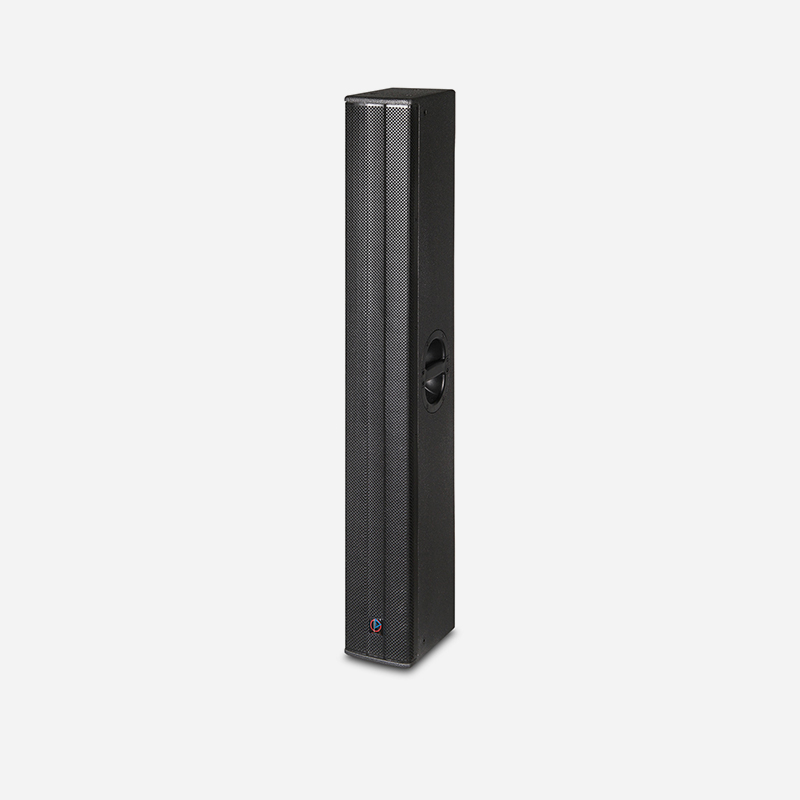

The Z64 column array employs 4 very high quality 6-inch neodymium LF drivers and 2 neodymium 1inch HF drivers that are coupled to special wave guides to ensure even and accurate coverage.

The Z64 is a compact, yet powerful column array that meets the demands of a high-power compact system that is easy to transport and easy to use powered system when combined with the ZB15P. The enclosure is made of high-quality plywood that is coated with polyurea waterproof paint to ensure high durability and superb finish.

Applications

  • Conference, meeting rooms, shops, exhibition floors, outdoor background music, and a wide variety of other outdoor or indoor live music applications.

Technical Specification

MODEL Z 64
FREQUENCY RESPONSE(-3dB) 80Hz-18KHz
FREQUENCY RESPONSE(-10dB) 75Hz-20KHz
DRIVERS 4×6″(150mm)1.5″voice coil LF
2×1″(25mm)1.7″voice coil HF
RATED POWER 320W RMS,1280W peak
SENSITIVITY 98dB  1watt/1meter
MAXIMUM SPL 123dB continuous/129dB peak
IMPEDANCE 8 ohms nominal
DISPERSION(-6dB) 110° × 25°(-17.5°/+7.5°)
CROSSOVER 2 KHz passive
INPUT CONNECTORS 2×Speakon NL4
PACKAGE SIZE 1285x340x270mm
NET WEIGHT 16 kg/pc
GROSS WEIGHT 19 kg/pc
