OUTPLAY Z Max

Add to Wishlist
Add to Wishlist
In stock

2-way powered column Array System

FEATURES

  • 1000W rms/ 4000W peak per stack of Z8 and ZB12p
  • Portable Powered system
  • Multi combinations and installation ways
  • 2 channel Class D amplifier
  • Excellent audio quality and contemporary styling
Add to Wishlist
Add to Wishlist

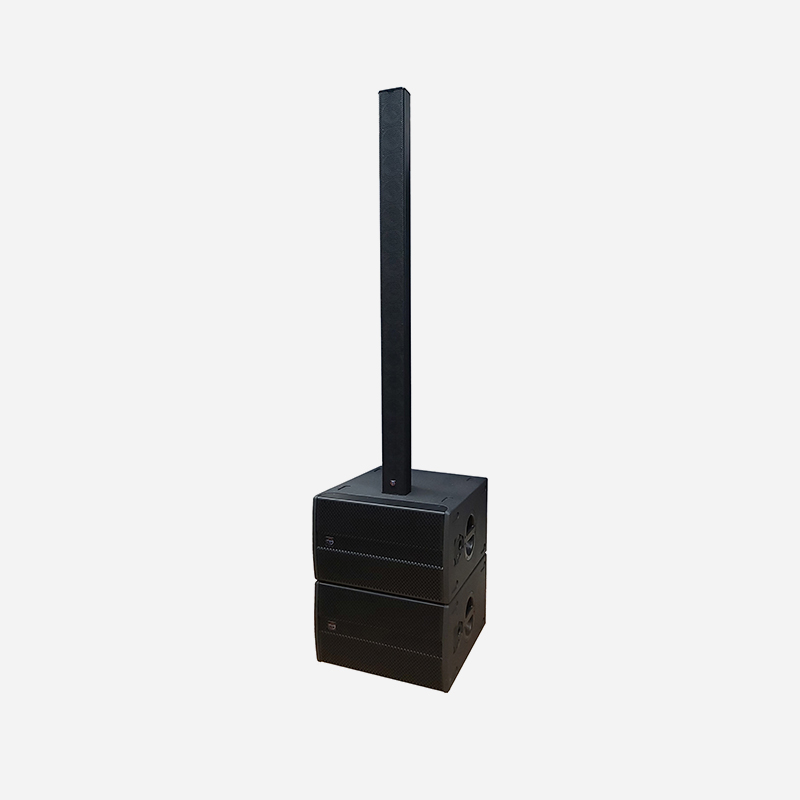

The OUTPLAY Z Max is a powered Slim column array speaker system that comprises of 2 nos Z8 column speaker, a ZB12P powered subwoofer system a ZB12p passive subwoofer and 2 nos Z8 pole for elevation of the Z8s.

ZB 12P is equipped with a state of the art 2 channel class D amplifier module that has an on-board DSP to actively drive 2 nos full range Z 8 column and an additional ZB12 passive sub from the outputs at the back of the ZB 12P sub.

The Z PRIME system is an ideal solution for installations of individual speakers in conference halls, restaurants or as a PA system for small bands.
The Z Prime column array loudspeaker system delivers exceptional performance in applications requiring excellent speech intelligibility and good directivity.

Applications

  • Wide Range of install and portable sound ie. Conference, meeting rooms, shops, exhibition floors, Meeting rooms, Small Live Bands, wide variety of other outdoor or indoor applications, Church and multi-purpose halls

Technical Specification

MODEL Z8
FREQUENCY RESPONSE(-3dB) 120Hz-18KHz
FREQUENCY RESPONSE(-10dB) 115Hz-20KHz
DRIVERS 8×3″(83mm)/0.8″voice coil Mid/High Unit
RATED POWER 200W RMS,
SENSITIVITY 800W peak/97dB 1watt/1meter
MAXIMUM SPL 120dB continuous,126dB peak
IMPEDANCE 8 ohms nominal
DISPERSION(-6dB) 70° horizontal
INPUT CONNECTORS 2xSpeakon NL4
PACKAGE SIZE 826x340x195mm(1pair/carton)
NET WEIGHT 4.7 kg/pc
GROSS WEIGHT 12 kg/pair
MODEL ZB 12P
FREQUENCY RESPONSE(-3dB) 40Hz-300Hz
DRIVERS 1X12″(300mm)
3″voice coil LF
RATED POWER 300W(RMS) /1200w Peak
SENSITIVITY 98dB
MAXIMUM SPL 121dB continuous,127dB peak
IMPEDANCE  8 ohms
INPUT CONNECTORS 2 x NL4
PACKAGE SIZE 605x415x632mm
NET WEIGHT 22 kg/pc
GROSS WEIGHT 26 kg/pc
